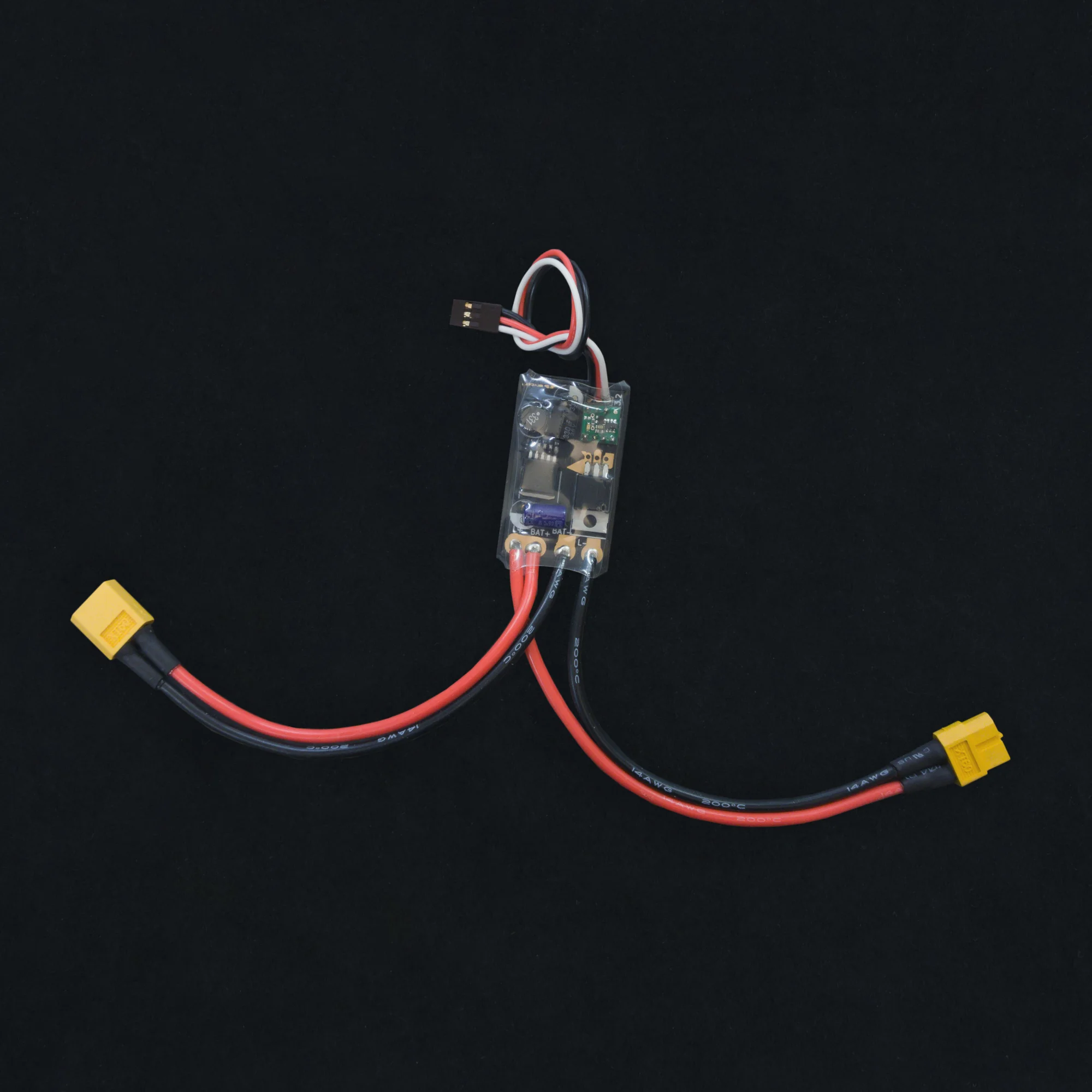

Skycat Trigger Unit V3 Pro (4S/6S)
Skycat Trigger Unit V3 Pro (4S/6S)
Trigger unit for 4S/6S applications where integrated +5V supply is needed!
Built in 5V power output for receiver.
When a launch signal is received from the aircraft's receiver, trigger conducts power to the launcher from the flight battery or a dedicated parachute battery. Fuse heats rapidly and breaks, releasing the piston after only 0,2 seconds from command.
Trigger is designed to work in the most demanding environments for maximum reliability. PCB is very well protected against vibrations.
Trigger comes with 15 cm cables and soldered XT60 connectors.
Specifications
Parachute battery: 3S - 6S (For X85-CF 4S max.)
Receiver voltage range: 4.9 V - 6.1 V (if internal supply is not in use)
Receiver power supply:
Voltage 5V
Continuous current 0.5A (with safety factor 2)
Max. current continuous 1A (component limit)
Max peak current 2A (point where supply will be compromised)
Fuse release time with 6S battery approx. 50ms, current approx 80A (X48-CF, X55-CF and X85-CF)
Receiver wire length: 15 cm / 5.9 in
Weight (15cm wires): 66g / 2.3 oz. Half of the weight is wires.
Dimensions: 5,4 x 3,2 x 1.2 cm / 2,1 x 1,2 x 0,47 in
EMC tested
Designed to withstand the most demanding environments
The trigger is protected against moisture and touch. All electronics and solders are covered by dipping the unit into liquid rubber. The coating protects against vibration and external elements but keeps the unit very lightweight.
Our tests cover underwater scenarios, +90 °C (194 °F) temperature with 100% relative humidity, as well as -20 °C freezing conditions.
The circuit board reliability is established on multiple factors. Components are soldered through the double-sided gold-plated board with brass bushings. It is very unlikely to have a poor connection between the component and circuit board, even in a vibrating faulty copter.
The highest quality components and manufacturing
The main components regulator and capacitors are from quality manufacturers Texas Instruments and Panasonic. Each Trigger is manually inspected by an electronics engineer and tested by ejecting real armed parachute launcher.
Designed with the highest reliability in mind
The trigger is rated for a single parachute launcher in normal use. However, we have test shot with overstress several times up to 4 x launchers simultaneously and single launcher up to 8S.
